DIN 7985 machine screws are widely used in assemblies that require a strong head profile, consistent threading, and controlled tightening. Designed with a cross-recessed (Phillips) pan head and metric thread, these screws provide better grip during installation and ensure stable fastening across metal, plastic, and composite components. The pan head design offers a wider contact surface, supporting uniform clamping and reducing the risk of surface damage.
As a screw supplier in Mumbai, Vimal Industrial Corporation offers a complete range of DIN 7985 machine screws in multiple sizes, materials, and surface finishes to match different industrial requirements. These machine screws are commonly used in panel assemblies, equipment manufacturing, electrical fittings, and fabrication work where consistent performance and proper fitment are important.
Our range also includes stainless steel fasteners for applications that require corrosion resistance and long-term durability in demanding environments. Being among dependable machine screw suppliers, we maintain ready stock to support both bulk orders and regular supply needs. DIN 7985 machine screws supplied by us are suitable for applications requiring reliable tightening, repeat installation, and consistent performance across varied industrial conditions
DIN 7985 machine screws are typically chosen for assemblies where a strong drive grip and neat top finish are required. The cross-recessed pan head allows better control during tightening, reducing chances of slippage and making them suitable for applications that involve repeated installation or assembly-line work.
At Vimal Industrial Corporation, DIN 7985 screws are kept readily available in M2 to M10 sizes to match common industrial usage. These screws are widely used in electrical panels, equipment housings, and fabricated assemblies where consistent fit and ease of installation are important.
As a screw supplier in Mumbai, we support ongoing industrial demand with standard specifications and steady availability. The range also includes stainless steel fasteners for applications exposed to moisture or requiring longer service life. DIN 7985 machine screws supplied are suited for setups where dependable fastening, smooth installation, and consistent performance are required across different working conditions.
DIN 7985 machine screws are used in applications where firm tightening, easy handling, and a clean top finish are required. The cross-recessed pan head design allows better grip during installation, making them suitable for both manual and powered fastening:
Electrical Panels & Enclosures – used in control boxes, junction panels, and switchgear assemblies where secure fastening and easy access are important.
Automation & Machinery – suitable for fixing covers, guards, and mechanical sub-assemblies that require consistent tightening and stability.
Electronics & Appliances – used in device housings, panels, and precision components where compact and reliable fastening is needed.
HVAC & Lighting Fixtures – applied in ducting brackets, light housings, and control units where ease of installation and maintenance is required.
Automotive Interiors & Accessories – used in trims, dashboard fittings, and interior components where neat finish and secure fitment matter.
General Engineering & MRO – widely used in workshop assemblies, repair work, and routine maintenance due to compatibility with standard Phillips tools.
These applications make DIN 7985 machine screws a practical choice for industries requiring easy installation, stable fastening, and consistent performance.
When it comes to DIN 7985 machine screws, consistent drive quality, proper head finish, and reliable availability are critical for smooth assembly work. Vimal Industrial Corporation focuses on maintaining these essentials across every supply, supporting both regular industrial consumption and project-based requirements.
Why clients choose us:
✅ Authorized APL Fasteners Dealer – genuine DIN 7985 screws with proper documentation and traceable batches.
✅ Wide Stock Availability – multiple sizes, thread options, and finishes ready for immediate dispatch.
✅ Flexible Packing Options – bulk supply, labelled kits, and export-ready packaging as required.
✅ Application Support – assistance with drive selection, installation needs, and fastening compatibility.
✅ Efficient Supply Network – quick dispatch from Mumbai with reliable delivery across industrial locations.
✅ Quality Consistency – supplied as per DIN standards with supporting test documentation.
Whether for production lines, fabrication work, or maintenance operations, DIN 7985 machine screws are supplied with consistent specifications, dependable availability, and reliable service support.

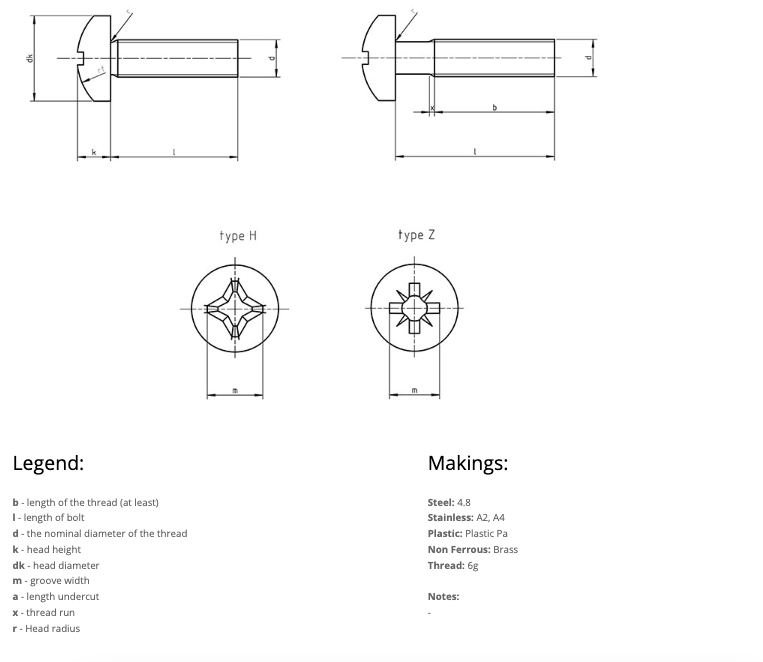

| Thread d | dimensions in mm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M1,6 | M2 | M2,5 | M3 | (M3,5) | M4 | M5 | M6 | M8 | M10 | |||
| P | 0,35 | 0,4 | 0,45 | 0,5 | 0,6 | 0,7 | 0,8 | 1 | 1,25 | 1,5 | ||
| a max. | 0,7 | 0,8 | 0,9 | 1 | 1,2 | 1,4 | 1,6 | 2 | 2,5 | 3 | ||
| b | +2 0 |
+2 0 |
+2 0 |
+2 0 |
+2 0 |
+2 0 |
+2 0 |
+2 0 |
+2 0 |
+2 0 |
||
| 15 | 16 | 18 | 19 | 20 | 22 | 25 | 28 | 34 | 40 | |||
| da max. | 2,1 | 2,6 | 3,1 | 3,6 | 4,1 | 4,7 | 5,7 | 6,8 | 9,2 | 11,2 | ||
| dk nominal = max. | 3,2 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 | ||
| dk min. | 2,9 | 3,7 | 4,7 | 5,7 | 6,64 | 7,64 | 9,64 | 11,57 | 15,57 | 19,48 | ||
| k nominal | 1,3 | 1,6 | 2 | 2,4 | 2,7 | 3,1 | 3,8 | 4,6 | 6 | 7,5 | ||
| k max. | 1,42 | 1,72 | 2,12 | 2,52 | 2,82 | 3,25 | 3,95 | 4,75 | 6,15 | 7,68 | ||
| k min. | 1,18 | 1,48 | 1,88 | 2,28 | 2,58 | 2,95 | 3,65 | 4,45 | 5,85 | 7,32 | ||
| r min. | 0,1 | 0,1 | 0,1 | 0,1 | 0,2 | 0,2 | 0,2 | 0,25 | 0,4 | 0,4 | ||
| rf approx. | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 | ||
| v approx. | 0,8 | 1,1 | 1,3 | 1,6 | 1,9 | 2 | 2,5 | 3 | 3,7 | 4,8 | ||
| x max. | 0,9 | 1 | 1,1 | 1,25 | 1,5 | 1,75 | 2 | 2,5 | 3,2 | 3,8 | ||
| Cross recess | No. | 0 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 4 | |
| Type H | m | approx. | 1,8 | 2,5 | 2,7 | 3,1 | 4,2 | 4,6 | 5,3 | 6,8 | 9 | 10,2 |
| penetration depth | min. | 0,72 | 1,1 | 1,3 | 1,7 | 1,74 | 2,04 | 2,77 | 3,03 | 4,18 | 5,38 | |
| max. | 1,02 | 1,4 | 1,8 | 2 | 2,24 | 2,54 | 3,27 | 3,53 | 4,68 | 5,88 | ||
| Type Z | m | approx. | 1,8 | 2,4 | 2,6 | 3 | 4 | 4,3 | 5 | 6,7 | 8,8 | 9,9 |
| penetration depth | min. | 0,92 | 1,1 | 1,27 | 1,68 | 1,65 | 1,9 | 2,64 | 3,02 | 4,06 | 5,23 | |
| max. | 1,17 | 1,35 | 1,52 | 1,93 | 2,11 | 2,36 | 3,1 | 3,48 | 4,52 | 5,69 | ||
| I | ||||||||||||
| nominal | min. | max. | ||||||||||
| Mass (7,85 kg/dm3), in kg per 1000 units, approximately | ||||||||||||
| 2 | 1,8 | 2,2 | 0,34 | |||||||||
| 3 | 2,8 | 3,2 | 0,34 | 0,34 | ||||||||
| 4 | 3,75 | 4,25 | 0,37 | 0,62 | ||||||||
| 5 | 4,75 | 5,25 | 0,4 | 0,67 | 0,99 | 1,4 | ||||||
| 6 | 5,75 | 6,25 | 0,43 | 0,71 | 1,05 | 1,48 | 2,66 | |||||
| 8 | 7,7 | 8,3 | 0,49 | 0,8 | 1,17 | 1,63 | 2,91 | |||||
| 10 | 9,7 | 10,3 | 0,55 | 0,88 | 1,29 | 1,79 | 3,16 | 5,14 | 10,9 | |||
| 12 | 11,65 | 12,35 | 0,61 | 0,95 | 1,42 | 1,94 | 3,41 | 5,49 | 11,5 | |||
| (14) | 13,65 | 14,35 | 0,67 | 1,03 | 1,54 | 2,1 | 3,66 | 5,84 | 12,2 | |||
| 16 | 15,65 | 16,35 | 0,73 | 1,11 | 1,67 | 2,25 | 3,91 | 6,29 | 12,8 | |||
| (18) | 17,65 | 18,35 | 0,79 | 1,19 | 1,8 | 2,41 | 4,16 | 6,64 | 13,5 | |||
| 20 | 19,6 | 20,4 | 0,85 | 1,27 | 1,92 | 2,56 | 4,41 | 7 | 14,2 | |||
| (22) | 21,6 | 22,4 | 0,91 | 1,35 | 2,05 | 2,72 | 4,66 | 7,35 | 14,8 | |||
| 25 | 24,6 | 25,4 | 1 | 1,47 | 2,25 | 2,94 | 5,03 | 7,87 | 15,8 | |||
| (28) | 27,6 | 28,4 | 1,09 | 1,59 | 2,5 | 3,24 | 5,4 | 8,4 | 16,8 | |||
| 30 | 29,6 | 30,4 | 1,18 | 1,71 | 2,63 | 3,44 | 5,7 | 8,75 | 17,5 | |||
| 35 | 34,5 | 35,5 | 3,4 | 3,94 | 6,5 | 9,6 | 19,1 | |||||
| 40 | 39,5 | 40,5 | 4,44 | 7,3 | 10,5 | 20,7 | 35,7 | |||||
| 45 | 44,5 | 45,5 | 8 | 11,4 | 22,3 | 37,7 | ||||||
| 50 | 49,5 | 50,5 | 8,7 | 12,3 | 23,9 | 41,2 | ||||||
| 55 | 54 | 56 | 25,4 | 43,7 | ||||||||
| 60 | 59 | 61 | 27 | 46,2 | ||||||||
The DIN 7985 has a wide, rounded head that sits on top of the surface. Unlike countersunk screws that can crack thin plastic or soft metal, the pan head acts like a built-in washer. It spreads the clamping force of the bolt fastener over a larger area, making it the safest machine screw nut bolt for electrical housings and delicate panels.
Mumbai has a high salt content in the air. In a standard steel screw, the deep Phillips cross-recess is the first place where water sits and starts rusting. A professional Nut Bolt Supplier will always suggest Stainless Steel Fasteners (A2 or A4) to prevent the head from rusting and “stripping” when you try to repair the machine later.
Yes, for almost all practical purposes. ISO 7045 is the international version of the German DIN 7985. They have the same head shape and Phillips drive. As a leading Nut Bolt Supplier Mumbai, we keep both in stock so your project stays compliant with both local and global engineering specs.
Absolutely. DIN 7985 screws have standard metric threads (M2, M3, M4, etc.). They pair perfectly with any DIN 934 hex nut. Many electronics manufacturers in India use this machine screw nut bolt combination with a small washer to ensure a vibration-proof grip.
We provide “Traceable Quality.” Every DIN 7985 screw we supply comes with a Material Test Report (MTR). Whether you need M2 for a circuit board or M10 for a heavy machine, we are the Nut Bolt Supplier Mumbai that guarantees high-strength, precision-forged fasteners screws bolts with pan-India delivery.
