Vimal Industrial Corporation is a leading stockist and supplier of DIN 965 machine screws based in Mumbai, India. Manufactured according to DIN 965 standards, these screws feature a cross-recessed (Phillips) countersunk head with a metric machine thread, providing a flush, aesthetic finish ideal for precision assemblies. The 90-degree countersunk head ensures smooth surface contact and consistent clamping force in metal and plastic applications.
Our inventory covers a complete range of DIN 965 Phillips countersunk machine screws across various diameters, lengths, materials, and finishes. We serve OEM manufacturers, fabricators, panel builders, automation companies, and MRO teams that require high-precision fasteners for critical assembly operations.
As industries move toward modern fastening systems that combine appearance and performance, DIN 965 machine screws remain a standard choice. Vimal Industrial Corporation, in partnership with APL Fasteners, maintains ready stock of DIN 965 screws in sizes ranging from M1.6 to M10, covering both standard and fine-pitch threads.
Each batch is tested for dimensional accuracy, recess depth, head angle, and thread pitch as per DIN 965. All products are stored in climate-controlled conditions and supplied with mill test certificates, lot traceability records, and third-party inspection reports on request. Our Mumbai warehouse and pan-India logistics network enable same-day dispatch for urgent requirements and scheduled project supplies.
DIN 965 screws are widely used in assemblies that require a flush finish, secure fit, and a professional look:
Electrical and Electronic Devices – for panel mounts, terminal plates, and control assemblies.
Machinery and Automation Systems – used in equipment covers and mechanical sub-assemblies.
Automotive and Aerospace Applications – for interior fixtures and flush body components.
Consumer Appliances and Lighting – ideal for casings and surface-mounted assemblies.
Sheet-Metal and Fabrication Works – for joining components where a smooth finish is required.
General Engineering and MRO – routine maintenance jobs requiring Phillips drive access.
With decades of expertise in industrial fasteners, Vimal Industrial Corporation is recognized for reliable supply chains, technical competence, and on-time delivery.
Why clients choose us:
✅ Authorized APL Fasteners Dealer – authentic products with full mill certification
✅ Comprehensive Inventory – standard and fine-thread variants available ex-stock
✅ Bulk and Custom Packing – bar-coded cartons, kits, or export pallets
✅ Technical Support – drive selection, torque guidance, and fastening recommendations
✅ Nationwide Dispatch – same-day shipping from Mumbai to major industrial zones
✅ Quality Compliance – tested per DIN 965 dimensions and ISO mechanical standards
✅ Responsive Service – quick quotes, dedicated account management, and export coordination
Whether for OEM production, engineering projects, or MRO operations, we deliver DIN 965 machine screws with verified quality, consistent supply, and traceable documentation.

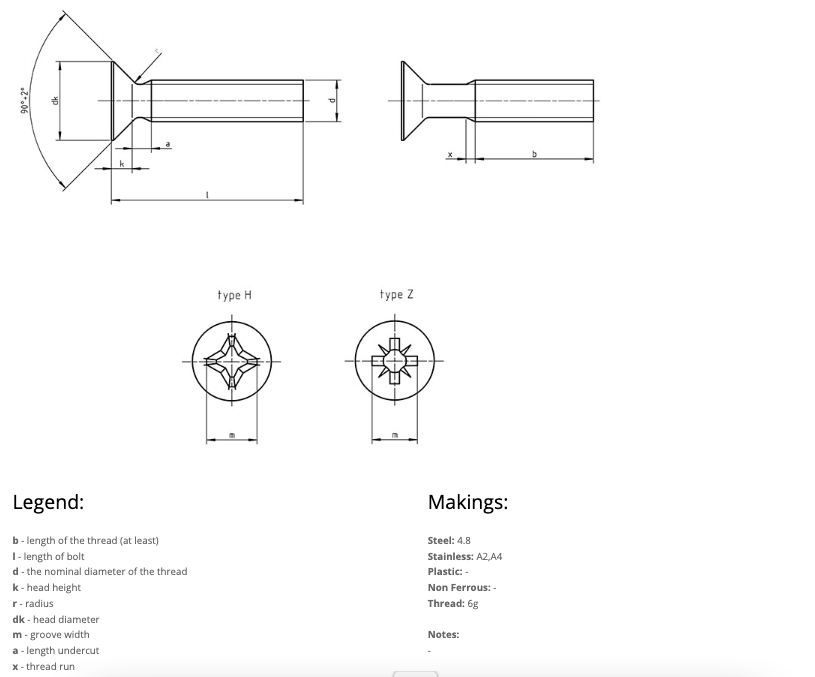

| Thread d | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 |
|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.35 | 0.4 | 0.45 | 0.5 | 0.8 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| A max. | 0.7 | 0.8 | 0.9 | 1.0 | 1.2 | 1.4 | 1.6 | 2.0 | 2.5 | 3.0 |
| B min. | 15 | 16 | 18 | 19 | 20 | 22 | 25 | 28 | 34 | 40 |
| DK nominal max. | 3 | 3.8 | 4.7 | 5.6 | 6.5 | 7.5 | 9.2 | 11 | 14.5 | 17.57 |
| DK min. | 2.75 | 3.5 | 4.4 | 5.3 | 6.14 | 7.14 | 8.84 | 10.57 | 14.07 | 17.57 |
| K max. | 0.96 | 1.2 | 1.5 | 1.65 | 1.93 | 2.2 | 2.5 | 3 | 4 | 5 |
| r max. | 0.4 | 0.5 | 0.7 | 0.8 | 0.95 | 1.0 | 1.3 | 1.6 | 2.0 | 2.5 |
| X max. | 0.9 | 1.0 | 1.1 | 1.25 | 1.5 | 1.75 | 2.0 | 2.5 | 3.2 | 3.8 |
| Cross recess no. | 0 | 1 | 1 | 1 | 2 | 2 | 3 | 4 | 4 | |
| type H – M approx. | 1.7 | 2.35 | 2.7 | 2.9 | 3.9 | 4.4 | 4.6 | 6.6 | 8.7 | 9.6 |
| type H – penetration depth min. | 0.66 | 0.95 | 1.25 | 1.5 | 1.4 | 1.9 | 2.1 | 2.8 | 3.9 | 4.8 |
| type H – penetration depth max. | 0.91 | 1.25 | 1.55 | 1.8 | 1.9 | 2.4 | 2.6 | 3.3 | 4.4 | 5.3 |
| type Z – M approx. | 1.8 | 2.2 | 2.5 | 2.8 | 3.7 | 4.0 | 4.4 | 6.1 | 8.5 | 9.4 |
| type Z – penetration depth min. | 0.89 | 0.92 | 1.22 | 1.48 | 1.34 | 1.6 | 2.05 | 2.46 | 3.86 | 4.77 |
| type Z – penetration depth max. | 1.14 | 1.17 | 1.47 | 1.73 | 1.8 | 2.06 | 2.51 | 2.92 | 4.32 | 5.23 |
| Thread d | L | Weight kg/1000pcs | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| min. | max. | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | |
| 3 | 2.8 | 3.2 | 0.058 | 0.101 | 0.175 | |||||||
| 4 | 3.75 | 4.25 | 0.069 | 0.119 | 0.206 | 0.291 | 0.434 | |||||
| 5 | 4.75 | 5.25 | 0.081 | 0.137 | 0.236 | 0.335 | 0.494 | 0.676 | ||||
| 6 | 5.75 | 6.25 | 0.093 | 0.152 | 0.266 | 0.379 | 0.554 | 0.754 | 1.21 | |||
| 8 | 7.7 | 8.3 | 0.116 | 0.193 | 0.326 | 0.467 | 0.673 | 0.9 | 1.45 | 2.19 | ||
| 10 | 9.7 | 10.3 | 0.139 | 0.231 | 0.386 | 0.555 | 0.792 | 1.06 | 1.7 | 2.54 | 5.03 | |
| 12 | 11.65 | 12.35 | 0.162 | 0.268 | 0.446 | 0.643 | 0.911 | 1.22 | 1.95 | 2.89 | 5.67 | 9.59 |
| (14) | 13.65 | 14.35 | 0.185 | 0.306 | 0.507 | 0.731 | 1.03 | 1.37 | 2.19 | 3.25 | 6.3 | 10.6 |
| 16 | 15.65 | 16.35 | 0.208 | 0.343 | 0.567 | 0.82 | 1.15 | 1.53 | 2.44 | 3.61 | 6.94 | 11.6 |
| (18) | 17.65 | 18.35 | 0.381 | 0.627 | 0.908 | 1.27 | 1.68 | 2.69 | 3.95 | 7.57 | 12.6 | |
| 20 | 19.6 | 20.4 | 0.417 | 0.687 | 0.996 | 1.39 | 1.84 | 2.94 | 4.31 | 8.21 | 13.4 | |
| (22) | 21.6 | 22.4 | 0.747 | 1.08 | 1.51 | 1.99 | 3.18 | 4.66 | 8.84 | 14.6 | ||
| 25 | 24.6 | 25.4 | 0.838 | 1.22 | 1.69 | 2.22 | 3.55 | 5.19 | 9.79 | |||
| (28) | 27.6 | 28.4 | 1.35 | 1.87 | 2.46 | 3.93 | 5.72 | 10.7 | 17.6 | |||
| 30 | 29.6 | 30.4 | 1.44 | 1.99 | 2.61 | 4.16 | 6.08 | 11.7 | 18.6 | |||
| 35 | 34.5 | 35.5 | 2.29 | 2.99 | 4.76 | 6.96 | 13 | 21.1 | ||||
| 40 | 39.5 | 40.5 | 3.36 | 5.39 | 7.84 | 14.6 | 23.6 | |||||
| 45 | 44.5 | 45.5 | 6.02 | 8.73 | 16.2 | 26.1 | ||||||
| 50 | 49.5 | 50.5 | 6.65 | 9.61 | 17.8 | 28.6 | ||||||
| 55 | 54 | 56 | 19.4 | 31.1 | ||||||||
| 60 | 59 | 61 | 33.7 | |||||||||
The DIN 965 is engineered for “Flush Mounting.” The head features a 90-degree conical underside that fits into a pre-drilled countersunk hole. Once tightened, the top of the machine screw nut bolt stays perfectly level with the material surface. This is vital for sliding mechanisms, floor plates, and any bolt fastener application where a snag-free, flat surface is mandatory.
For countersunk screws like the DIN 965, the length is measured “Overall” (from the very top of the head to the tip of the threads). Because the head sits inside the material, the head height is part of the total functional length. Always verify this with your Fasteners Supplier India to avoid ordering screws that are too short for your assembly.
Yes. Since the DIN 965 uses standard metric threads, it can be paired with a DIN 934 nut to create a complete machine screw nut bolt joint. This setup is common in sheet metal work where the screw side must be flush, but the backside requires the heavy-duty clamping force of a bolt fastener and nut.
To achieve a truly flush finish, the receiving hole must be countersunk at exactly 90 degrees. If the angle is incorrect, the edges of the fasteners screws bolts will either stick out or sit too deep. A high-quality Fasteners Supplier like Vimal Industrial Corporation ensures that every screw is forged to exact DIN tolerances for a perfect mechanical fit.
Traceability is the hallmark of quality. Vimal Industrial Corporation provides fully certified DIN 965 machine screws with complete Material Test Reports (MTR). Whether you are an OEM in Mumbai or a construction firm elsewhere in India, we provide the technical support and high-strength fasteners screws bolts you need for a fail-proof assembly.
