Vimal Industrial Corporation is a leading stockist and supplier of DIN 915 socket set screws based in Mumbai, India. Built according to DIN 915 standards, these screws feature an internal hex (Allen) drive with a dog-point tip, designed to provide precise axial positioning without damaging the mating surface. The extended cylindrical point ensures accurate engagement with a pre-drilled hole or slot, making DIN 915 screws ideal for applications where repeatable alignment, guided locking, or controlled linear positioning is required.
We maintain a comprehensive inventory of DIN 915 dog-point set screws in multiple diameters, lengths, and material grades—supporting OEMs, automation companies, machine builders, instrumentation manufacturers, and MRO teams that rely on precise, non-destructive fastening.
DIN 915 dog-point screws are widely used where components need to be positioned with accuracy, frequently adjusted, or guided along a predetermined slot. Vimal Industrial Corporation maintains ready stock from M3 to M24, available in hardened alloy steel (45H, 12.9) and stainless-steel grades A2/A4 for corrosive or hygiene-sensitive environments.
All products comply with DIN 915 dimensional and mechanical requirements, including point length, diameter tolerances, hardness, and socket depth. Our controlled warehouse ensures batch consistency, and every order can be supplied with mill test certificates, chemical/mechanical test reports, and lot traceability. With our Mumbai warehouse and strong pan-India logistics, we support urgent industrial maintenance and routine OEM production schedules alike.
DIN 915 screws are used where accurate, repeatable positioning and non-damaging engagement are required:
Precision Machinery & Automation – alignment of mechanical stops, guides, and levers
Instrumentation & Measuring Devices – repeatable positioning of sliders, detents, and mechanisms
Shaft & Hub Assemblies – locking into pre-drilled holes without scoring the shaft
Linear Motion Systems – guided movement along slots and adjustment rails
Fixtures, Jigs & Tooling – positioning stops and locating points that require frequent adjustment
General Engineering & MRO – applications requiring controlled seating without penetrating the mating surface
Vimal Industrial Corporation is trusted by industries across India for accuracy, reliability, and verified quality.
Why clients choose us:
✅ Authorized APL Fasteners Dealer – assured genuine, standard-compliant dog-point set screws
✅ Extensive Stock Availability – all major thread sizes, lengths, and grades kept ready
✅ Material Flexibility – high-tensile alloy steel and stainless steel variants
✅ Custom Packing Options – project kits, bar-coded boxes, and export-grade pallets
✅ Technical Support – guidance on point-type selection (flat / cone / dog), torque, and application suitability
✅ Pan-India Delivery – quick dispatch from Mumbai to all major industrial regions
✅ Quality Assurance – dimensional checks, hardness tests, and batch traceability for every shipment
Whether for precision control systems, rotating equipment, or adjustable machinery, Vimal Industrial Corporation provides DIN 915 dog-point socket set screws with dependable performance and certified quality.

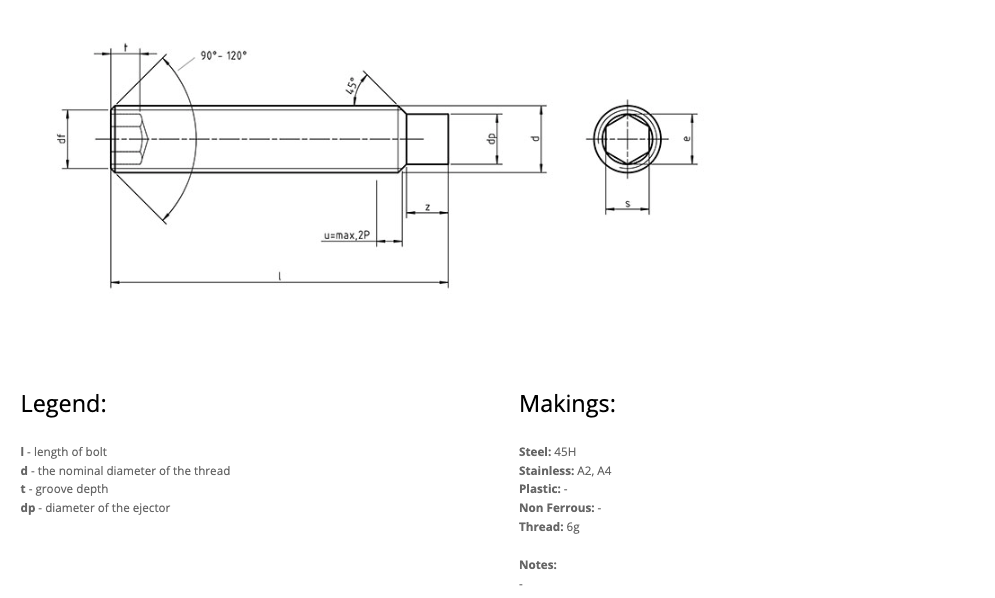

| Thread d | M1.4 | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 |
| df | approx. | Lower limit of minor thread diameter | ||||||||||||
| dp max. | 0.7 | 0.8 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 5.5 | 7 | 8.5 | 12 | 15 | 18 |
| dp min. | 0.45 | 0.55 | 0.75 | 1.25 | 1.75 | 2.25 | 3.2 | 3.7 | 5.2 | 6.64 | 8.14 | 11.56 | 14.57 | 17.57 |
| e min. | 0.803 | 0.803 | 1.003 | 1.427 | 1.73 | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 | 13.72 |
| e Nom. | 0.7 | 0.7 | 0.9 | 1.3 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| s min. | 0.711 | 0.711 | 0.889 | 1.27 | 1.52 | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | 12.032 |
| s max. | 0.724 | 0.724 | 0.902 | 1.295 | 1.545 | 2.045 | 2.56 | 3.08 | 4.095 | 5.095 | 6.095 | 8.115 | 10.115 | 12.142 |
| t min. | 0.6 | 0.7 | 0.8 | 1.2 | 1.2 | 1.5 | 2 | 2 | 3 | 4 | 4.8 | 6.4 | 8 | 10 |
| t max. | 1.4 | 1.5 | 1.7 | 2 | 2 | 2.5 | 3 | 3.5 | 5 | 6 | 8 | 10 | 12 | 15 |
| z min. | 0.4 | 0.4 | 0.5 | 0.63 | 0.75 | 1 | 1.25 | 1.5 | 2 | 3 | 4 | 5 | 6 | |
| z max. | 0.65 | 0.65 | 0.65 | 0.88 | 1 | 1.25 | 1.5 | 1.75 | 2.25 | 2.75 | 3.25 | 4.3 | 5.3 | 6.3 |
| z min. | 0.8 | 0.8 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 | 5 | 6 | 8 | 10 | 12 | |
| z max. | 1.05 | 0.724 | 1.25 | 1.5 | 1.75 | 2.25 | 2.75 | 3.25 | 4.3 | 5.3 | 6.3 | 8.36 | 10.36 | 12.43 |
| Thread d | M1.4 | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 |
| l | Weight (7.85kg/dm3) kg/1000pcs | |||||||||||||
| Nominal | min. | max. | ||||||||||||
| 2.5 | 2.3 | 2.7 | 0.018 | 0.019 | ||||||||||
| 3 | 2.8 | 3.2 | 0.022 | 0.029 | 0.044 | |||||||||
| 4 | 3.76 | 4.24 | 0.029 | 0.037 | 0.059 | 0.1 | 0.13 | |||||||
| 5 | 4.76 | 5.24 | 0.036 | 0.046 | 0.074 | 0.125 | 0.17 | 0.26 | ||||||
| 6 | 5.76 | 6.24 | 0.043 | 0.056 | 0.089 | 0.15 | 0.21 | 0.34 | 0.49 | |||||
| 8 | 7.71 | 8.29 | 0.119 | 0.199 | 0.3 | 0.49 | 0.73 | 1.04 | ||||||
| 10 | 9.71 | 10.29 | 0.148 | 0.249 | 0.4 | 0.68 | 1.04 | 1.39 | 2.5 | |||||
| 12 | 11.65 | 12.35 | 0.83 | 1.28 | 1.74 | 2.98 | 4.42 | |||||||
| 16 | 15.65 | 16.35 | 0.67 | 1.13 | 1.76 | 2.44 | 4.24 | 6.7 | 9.5 | |||||
| 20 | 19.58 | 20.42 | 0.85 | 1.43 | 2.17 | 3.14 | 5.5 | 8.7 | 12 | 20.1 | ||||
| 25 | 24.58 | 25.42 | 2.77 | 4.02 | 7.2 | 11 | 15.3 | 27 | 41.4 | |||||
| 30 | 29.58 | 30.42 | 4.9 | 8.8 | 13.3 | 18.9 | 33.2 | 51 | 70.3 | |||||
| 35 | 34.5 | 35.5 | 5.78 | 10.3 | 15.8 | 22.5 | 39.7 | 61.3 | 83.2 | |||||
| 40 | 39.5 | 40.5 | 11.9 | 18.3 | 26.1 | 46.3 | 71.6 | 98.2 | ||||||
| 45 | 44.5 | 45.5 | 81.9 | 113 | ||||||||||
| 50 | 49.5 | 50.5 | 92.2 | 128 | ||||||||||
| 55 | 54.4 | 55.6 | 145 | |||||||||||
| 60 | 59.4 | 60.6 | 160 | |||||||||||
Stop thinking of it as just a screw. The DIN 915 is an alignment tool. That cylindrical “Dog Point” at the tip is designed to lock into a pre-machined hole. Unlike a standard cup point that just digs into the surface, this screw nut bolt variant creates a permanent mechanical stop. It’s the ultimate bolt fastener for shafts that shouldn’t budge an inch.
Actually, yes. Clever engineers use the unthreaded tip of a DIN 915 as a tiny axle for levers or small rotating parts. The hex drive keeps the screw nut bolt fixed in the housing, while the smooth tip allows the mating part to swing freely. It’s a 2-in-1 Industrial Hardware hack that saves space and parts.
If the dog point is too long, it bottoms out in the hole before the threads tighten. If it’s too short, it won’t engage the groove. This is why you need a precise Fasteners Supplier India who understands “Full Dog” vs. “Half Dog” specs. A mismatched bolt fastener here can cause a high-speed pulley to fly right off the motor.
If you need 100% traceability and “Ready-to-Ship” inventory, Vimal Industrial is the name to trust. Being a leading Nut Bolt Supplier Mumbai, we don’t just sell parts; we provide the technical data you need to ensure your screw nut bolt assembly is safe, durable, and up to international DIN standards.
Because these are “Set Screws,” they need to be harder than the material they are locking into. Standard DIN 915 screws from a reliable Fasteners Supplier India are heat-treated to 45H hardness. This ensures the tip of the bolt fastener doesn’t deform under the heavy pressure of a rotating shaft.
